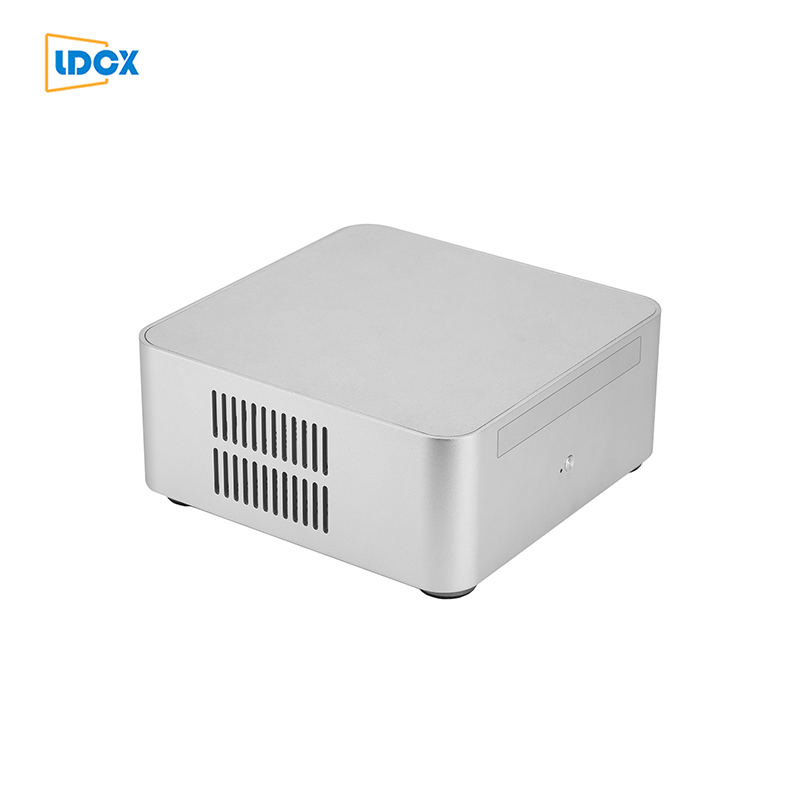

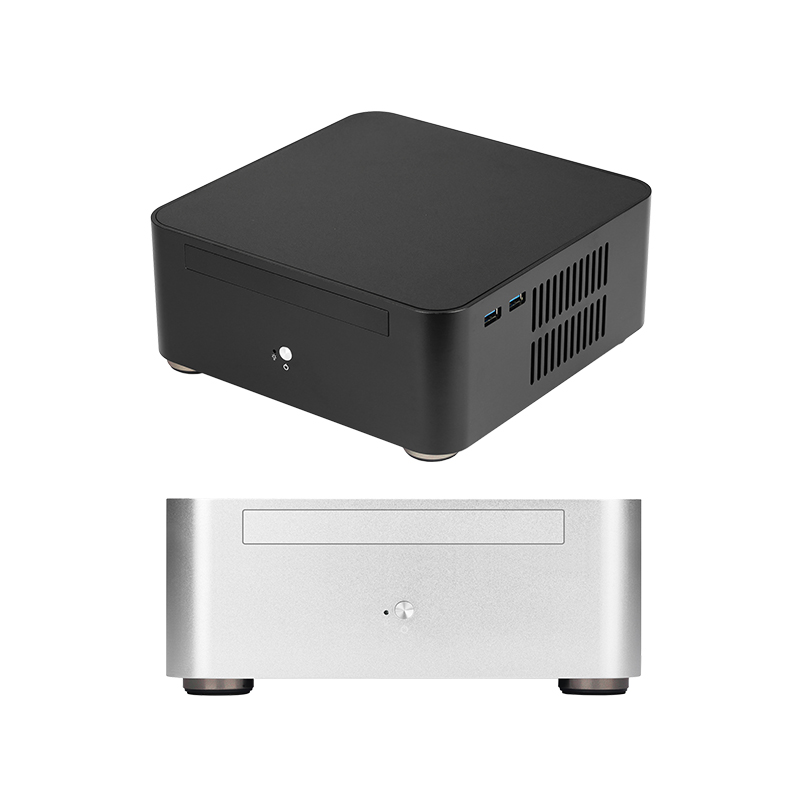

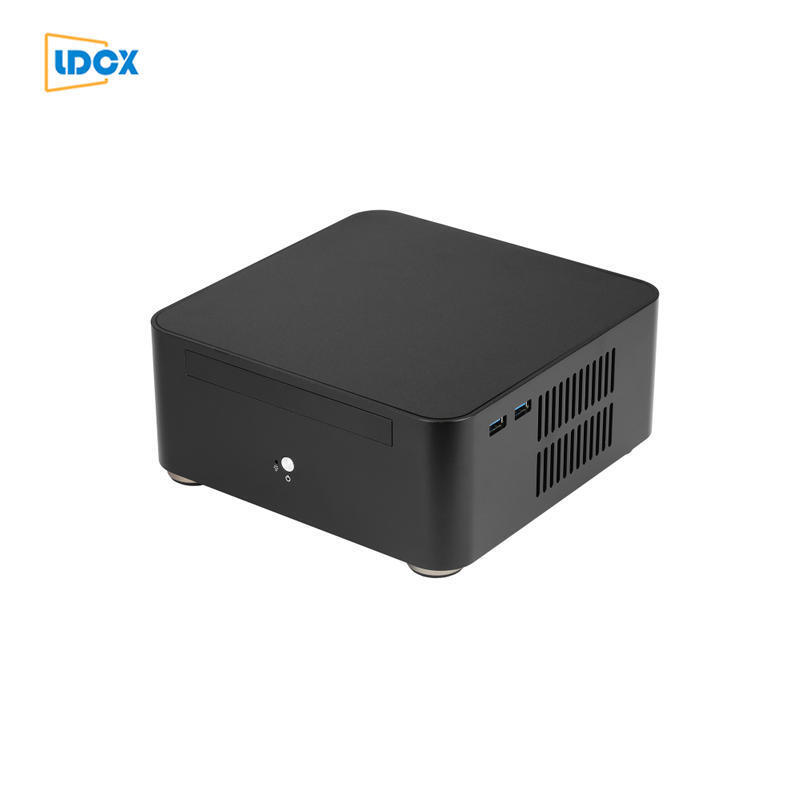

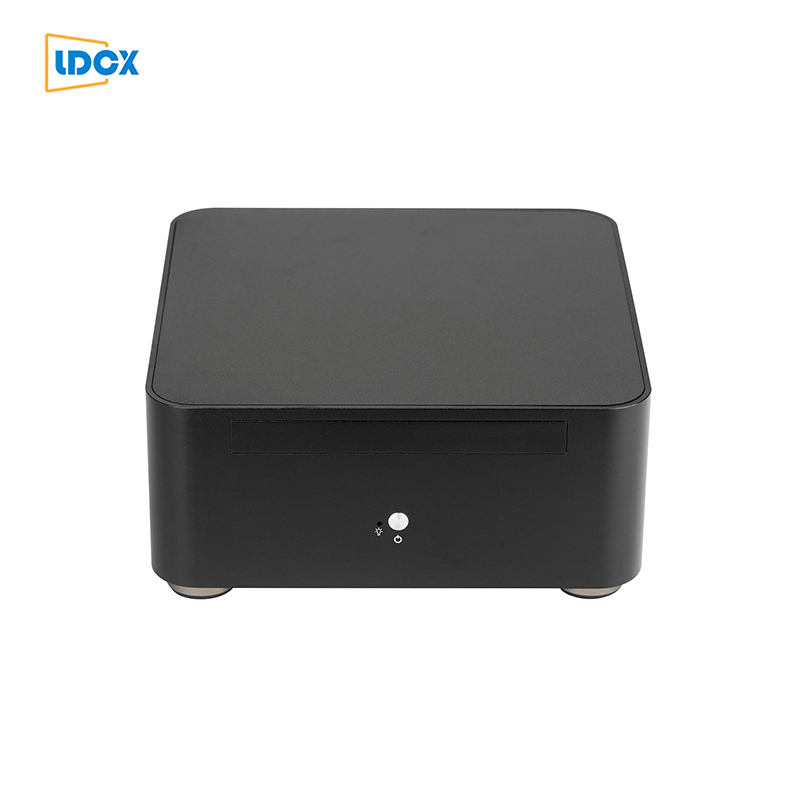

LDCX L80S All-Aluminum Mini ITX Case.Mini Computer Case

All aluminium with optical drive holder.2*USB 3.0.products support customization

Model:L80S

Size:197*197*80mm

Color:Black.Silver

Material:All-Aluminum

Products Inquiry

Product Pictures :

Product Model :

Name * :

email * :

CompanyName :

Message :

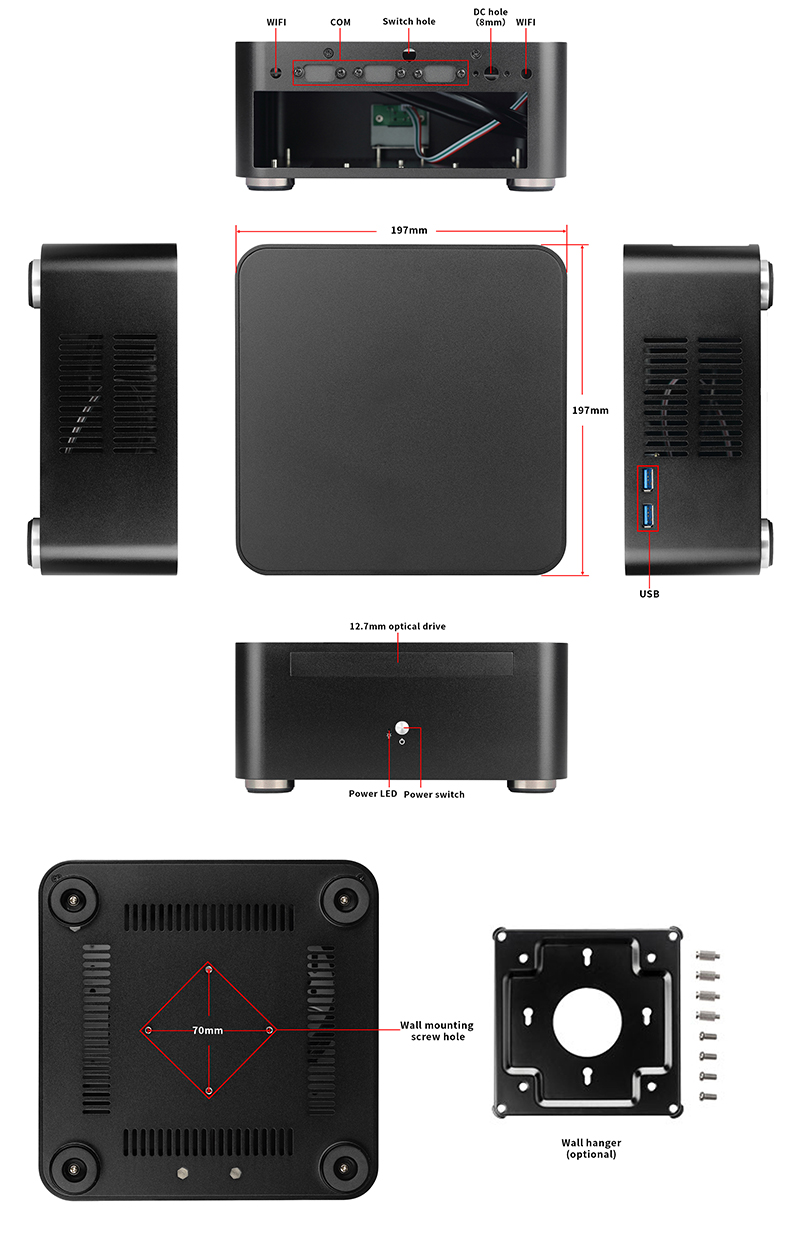

Size	197mm(W) x 197mm(D) x 80mm(H)
Material	Main body: 3.5mm aluminum alloy, upper cover: 2.5mm aluminum alloy, bottom cover: 1.5mm aluminum alloy;
Spec. of motherboard	Mini-ITX 170mm x 170mm
Height with CPU Fan	Under 45mm;
	Under 35mm while 2.5 inch hard disk installed;
	Under 20mm while 3.5 inch hard disk installed;
Case fan	2 x 4010 / 5010 / 6010 Fan
Hard disk	Supporting 1 x 2.5inch / 1 x 3.5inch HD installed.
Graphics card	No
Power Supply	DC-ATX

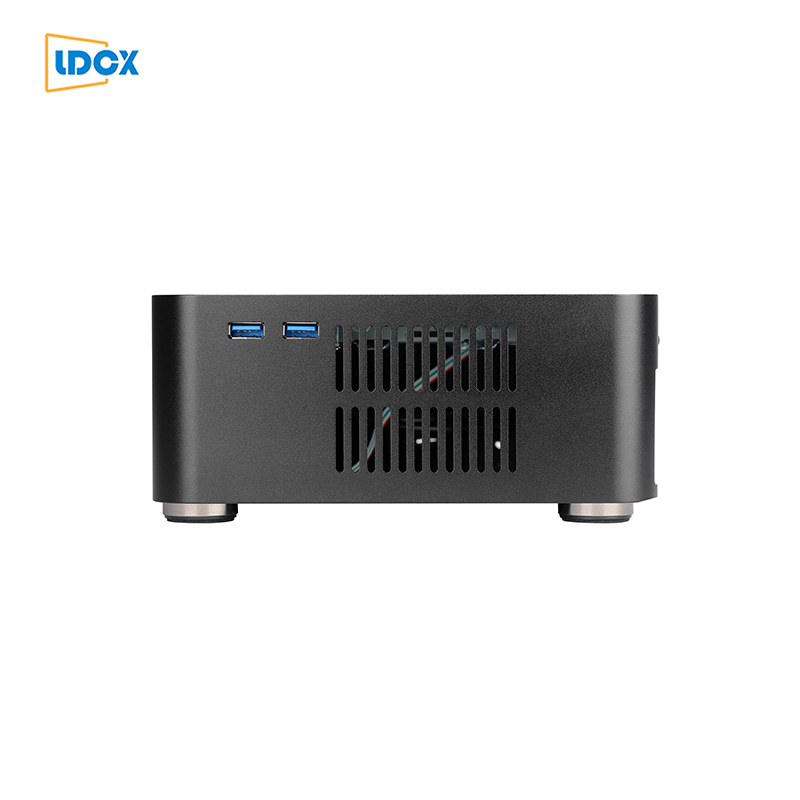

Front interface	2 x USB2.0 / 2 x USB3.0

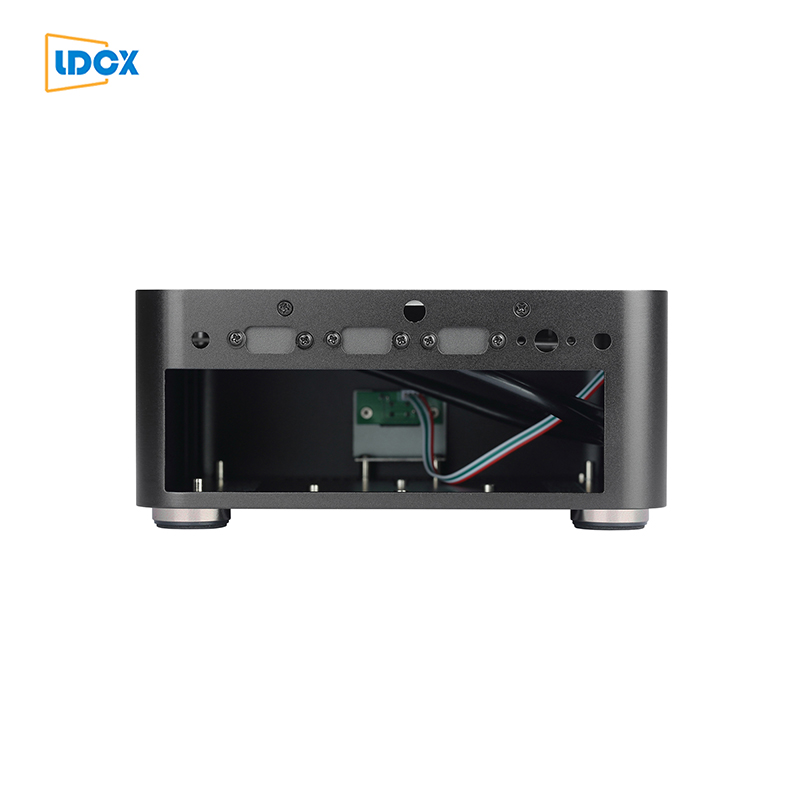

Post interface	2 x WIFI hole
	1 x Full height panel hole
	1 x DC hole
	3 x COM hole
Color	Black (Support customized colors)
Placement mode	Horizontal
Placement mode	Wall hanging
Weight	Net weight: 1.20 KG;
Weight	Rough weight: 1.46 KG
Package size	225mm(W) x 150mm(D) x 262mm(H)
