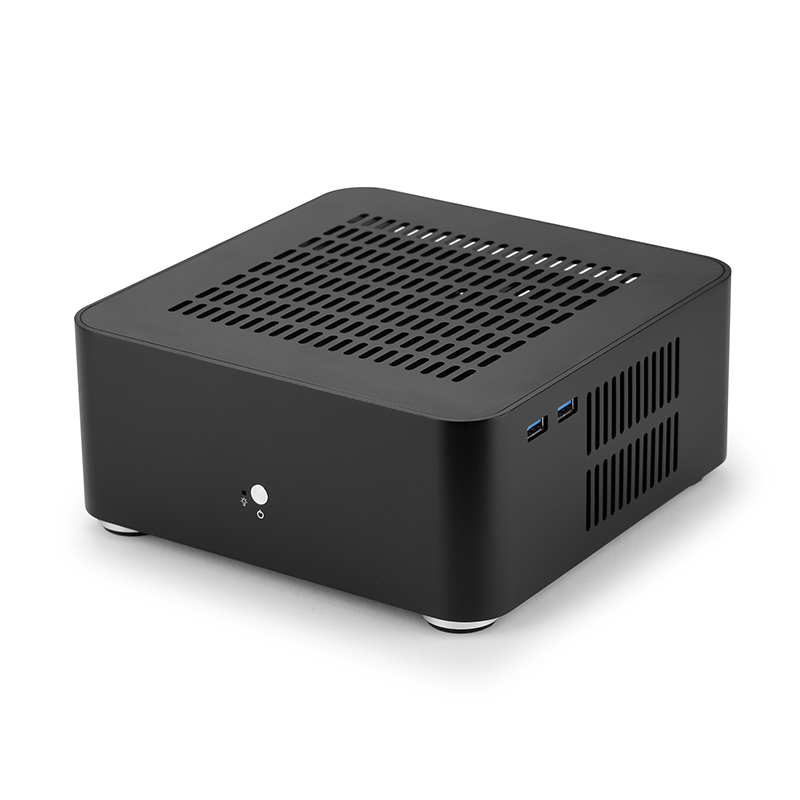

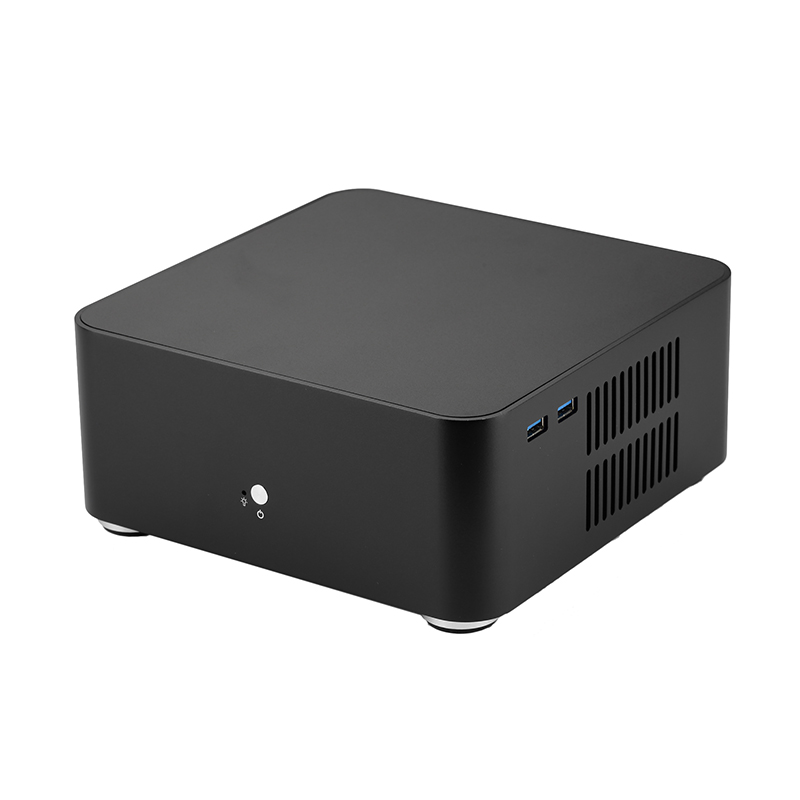

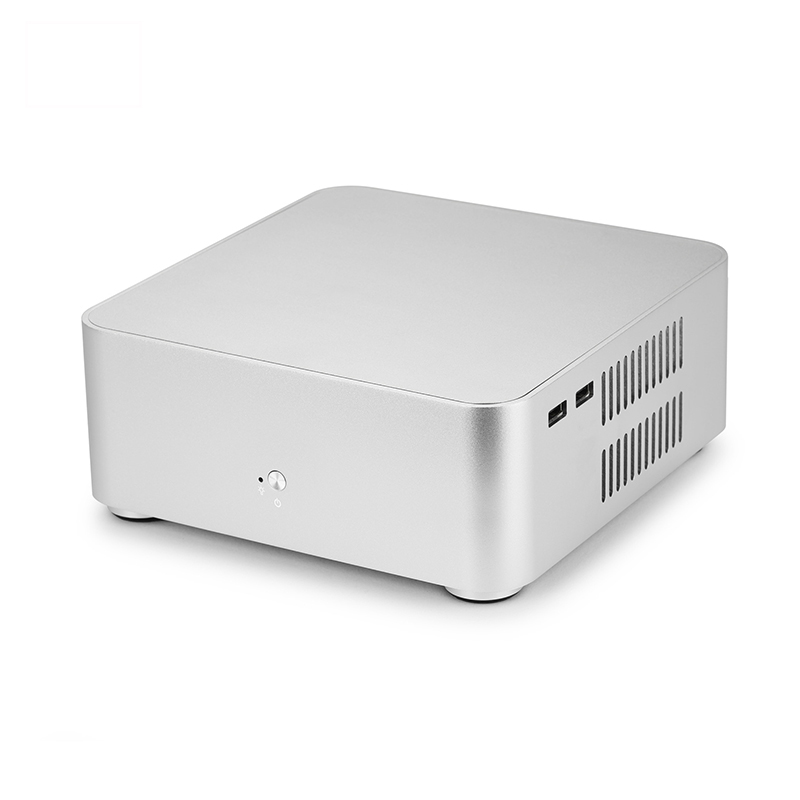

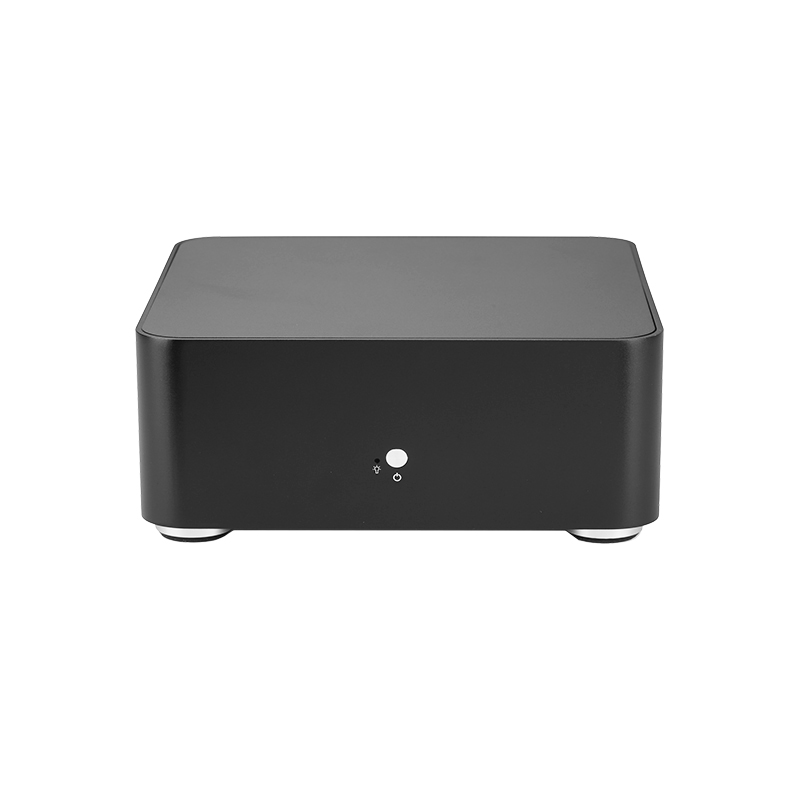

LDCX L80 All-Aluminum Mini ITX Case.Full height back panel mini computer case

All-aluminium material, two colours available, 2*USB3.0 Or 2.0 ,Full height baffle ,products support customization

Model:L80

Size:197*197*80mm

Color:Black.Silver

Material:All-Aluminum

Products Inquiry

Product Pictures :

Product Model :

Name * :

email * :

CompanyName :

Message :

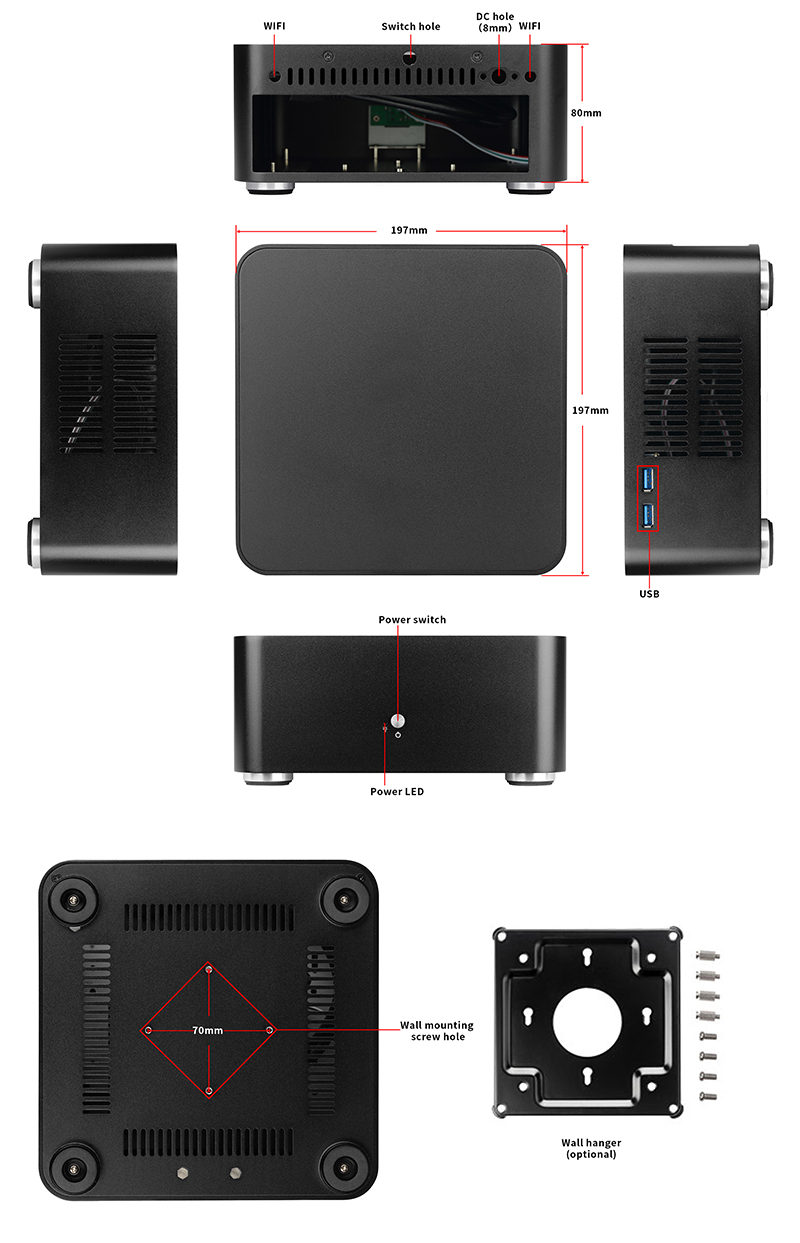

Size	197mm(W) x 197mm(D) x 80mm(H)

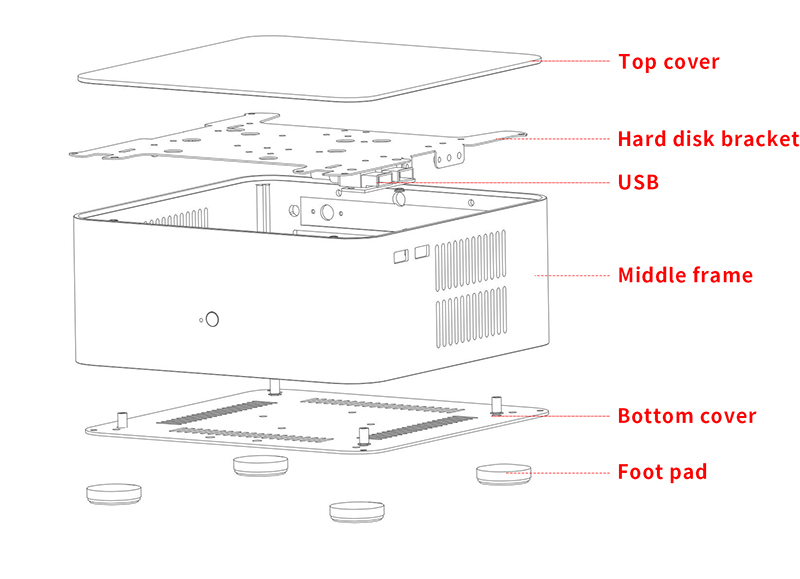

Material	Main body: 3.5mm aluminum alloy, upper cover: 2.5mm aluminum alloy, bottom cover: 1.5mm aluminum alloy;
Spec. of motherboard	Mini-ITX 170mm x 170mm
Height with CPU Fan	Under 57mm;
	Under 47mm while 2.5 inch hard disk installed;
	Under 32mm while 3.5 inch hard disk installed;
Case fan	2 x 4010 / 5010 / 6010 Fan
Hard disk	Supporting 2 x 2.5inch / 1 x 3.5inch HD installed.
Graphics card	No
Power Supply	DC-ATX
Front interface	2 x USB2.0 / 2 x USB3.0

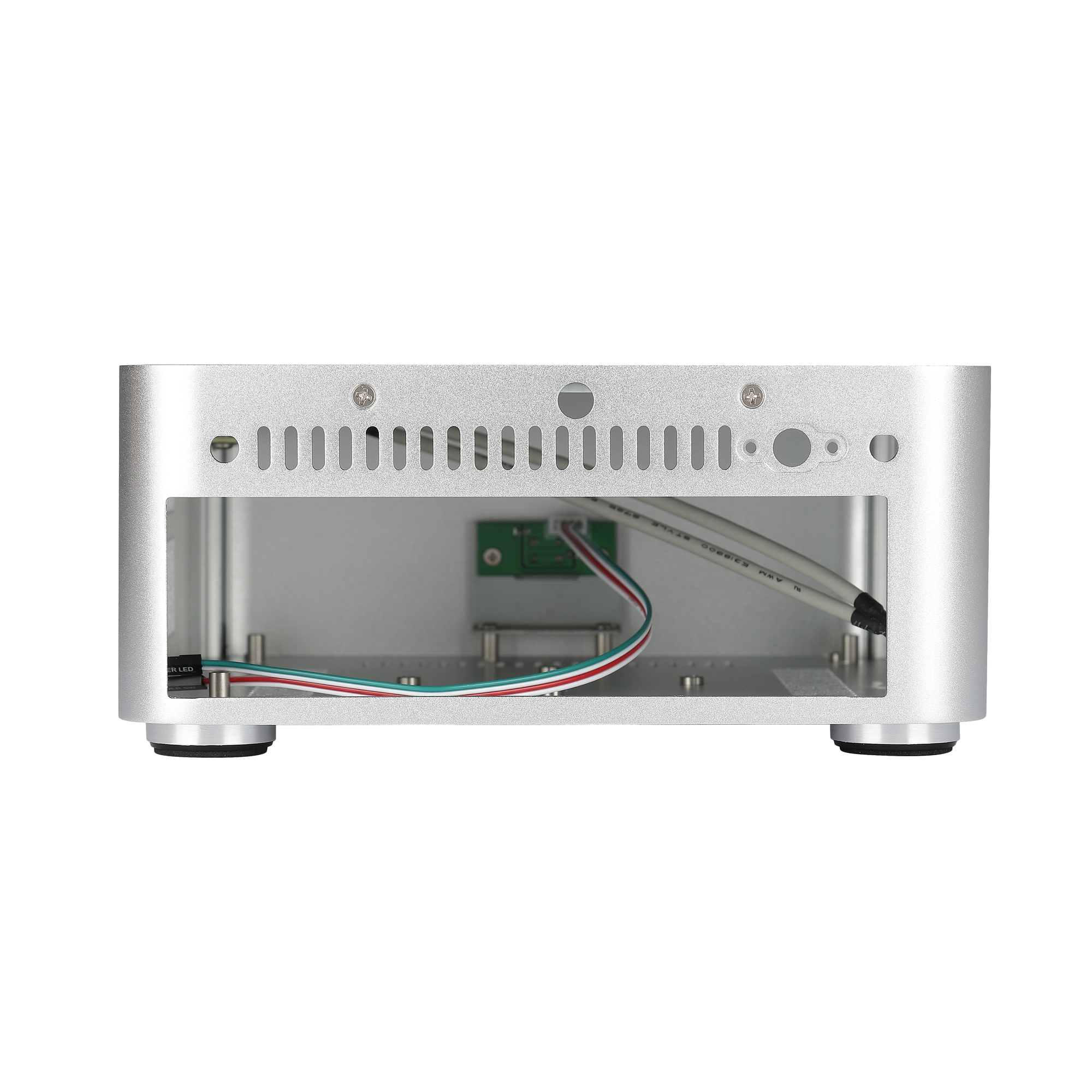

Post interface	2 x WIFI hole
	1 x DC hole
	1 x Full height panel hole
Color	Black	Support customized colors
	Silver
Placement mode	Horizontal
	Wall hanging
Weight	Net weight: 0.96 KG;
	Rough weight: 1.24 KG
Package size	225mm(W) x 150mm(D) x 262mm(H)
