LDCX U110 All-Aluminum Mini ITX Case.Mini Computer Case

All-aluminium material.four colours available.2*USB2.0.products support customization

Model:U110

Size:200*110*270mm

Color:Black. Silver. Blue. Rose Gold

Material:All-Aluminum

Products Inquiry

Product Pictures :

Product Model :

Name * :

email * :

CompanyName :

Message :

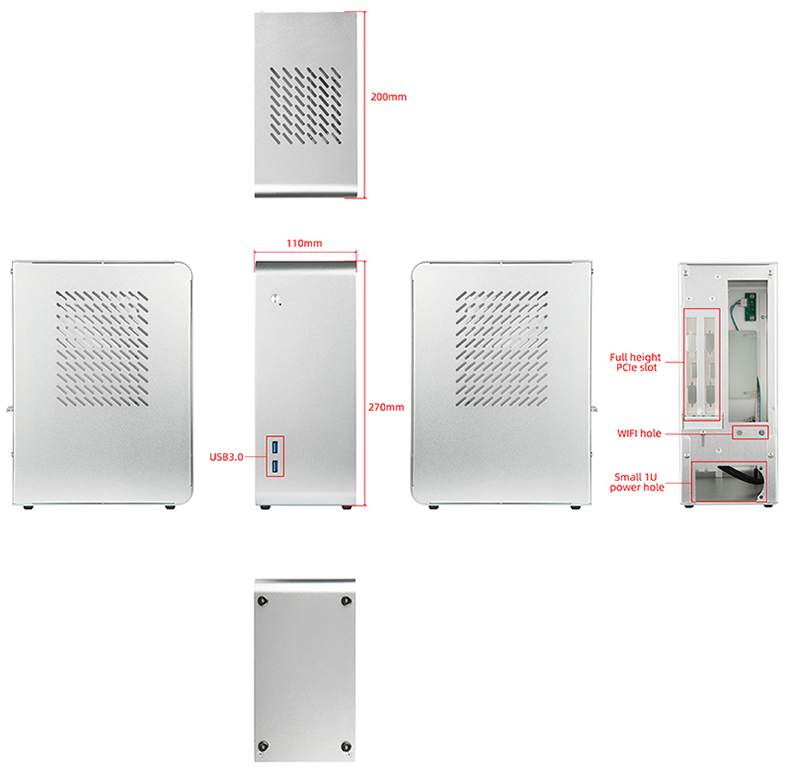

Size	200mm(W) x 110mm(D) x 270mm(H)
Material	Boye: High heat dissipation aluminum material (the thickness of main body is 2.5mm, the thickness of cover plate on both sides is 1.5mm, and the thickness of rear baffle is 1.5mm)
Spec. of motherboard	Mini-ITX 170mm x 170mm / 170mm x 190mm
Height with CPU Fan	Under 40mm;
Case fan	1 x 8010 Fan
Hard disk	Supporting 2 x 2.5inch HD installed.

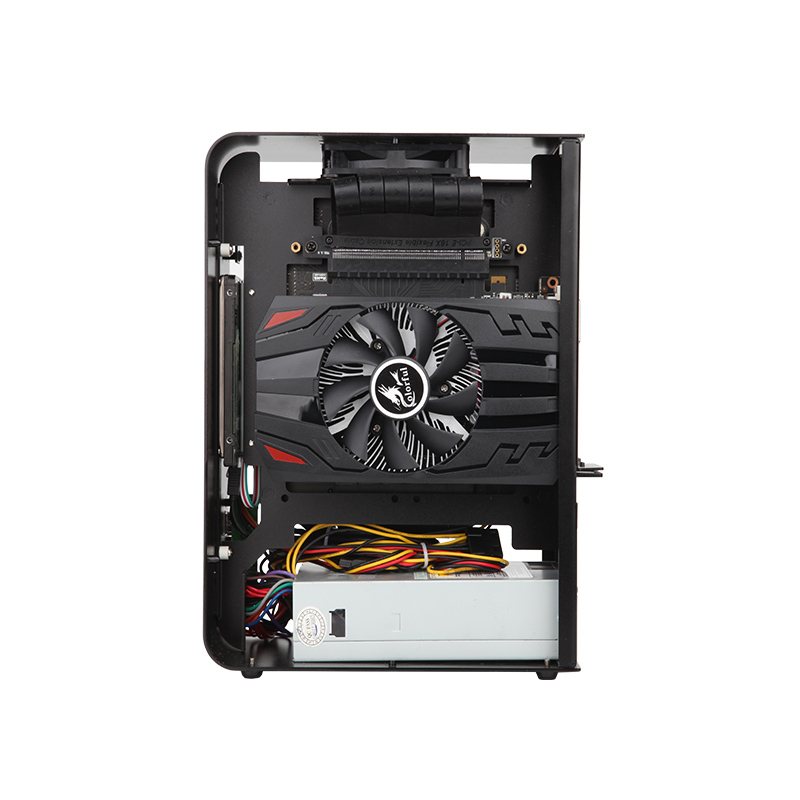

Graphics card	Only one 2.5 inch hard disk can be installed with 190mm length full height graphics card.
	Installation of two 2.5 inch hard disk can be installed with 170mm long height display card.
Power Supply	Small 1U power supply
Front interface	2 x USB3.0

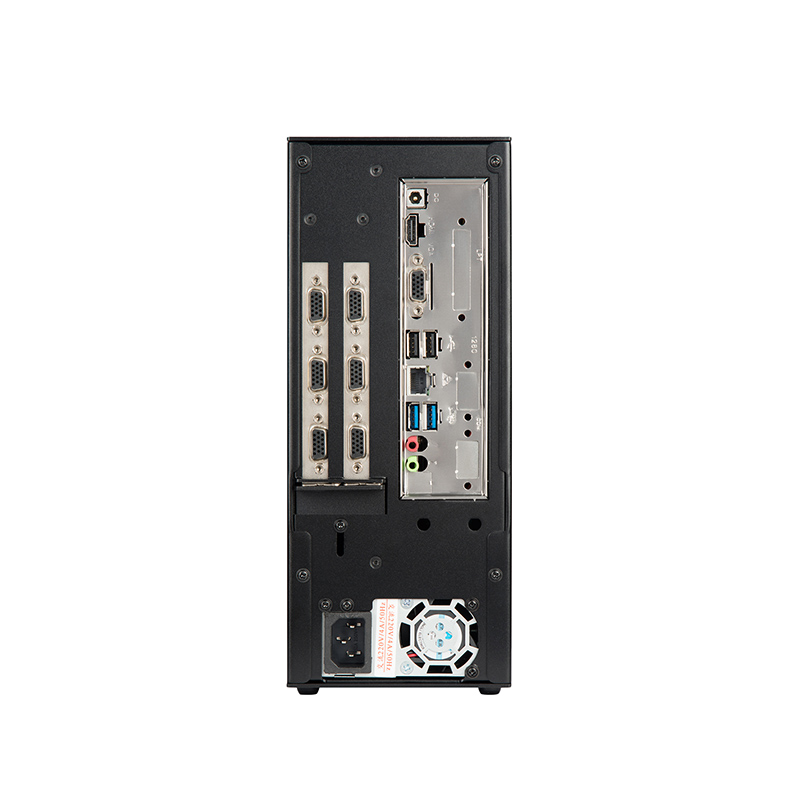

Post interface	2 x Full height PCIe slot
	2 x WIFI hole
	1 x Small 1U power hole
	1 x Full height panel hole.

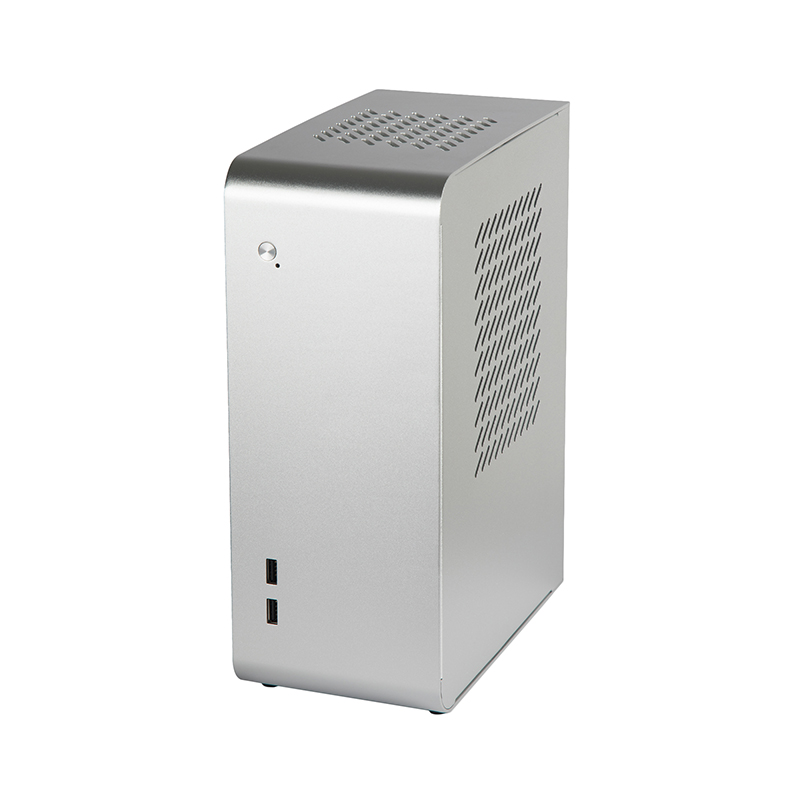

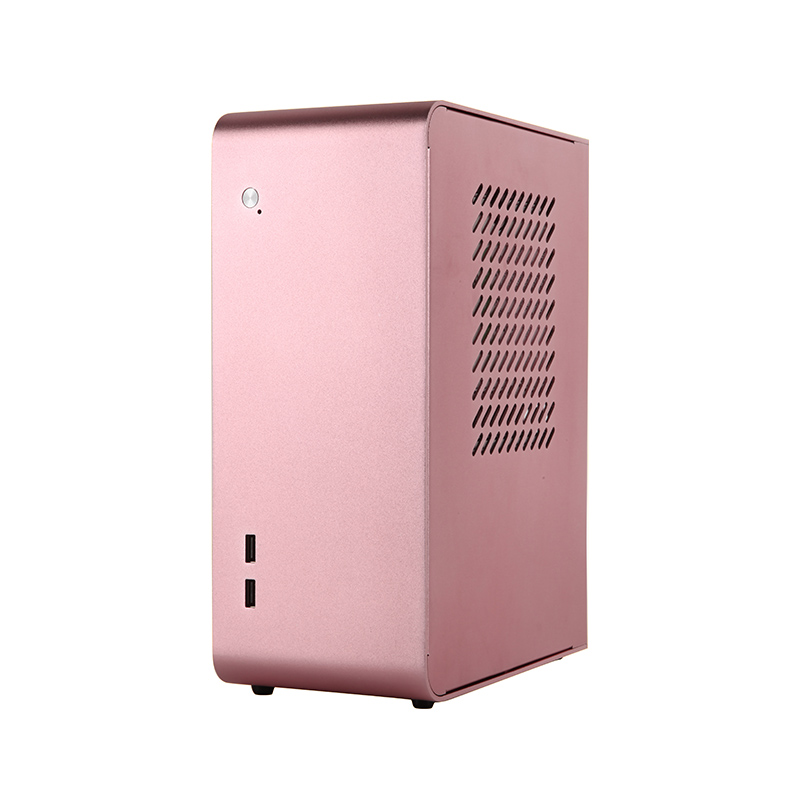

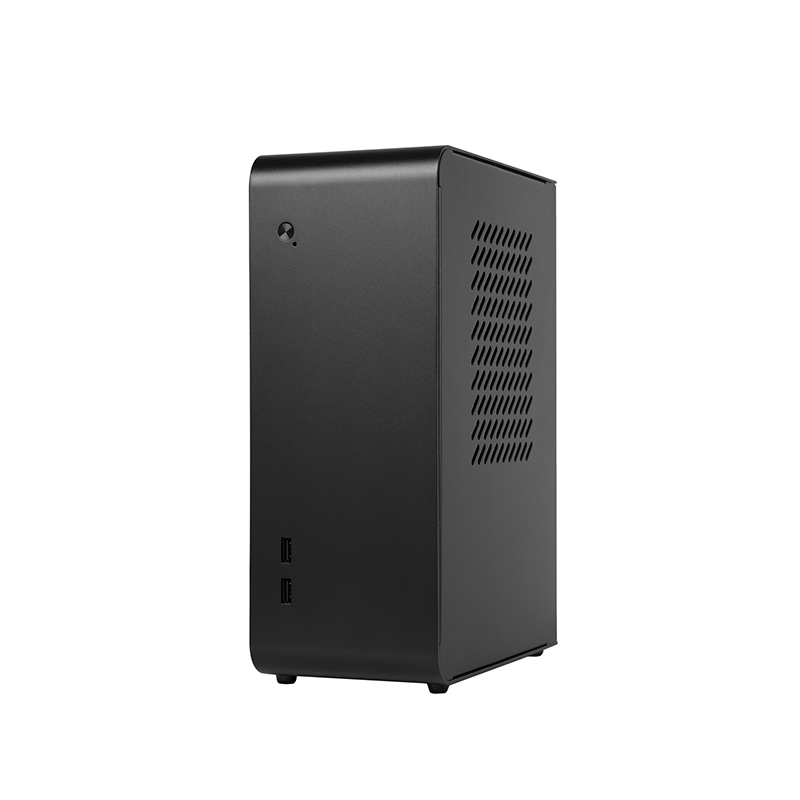

Color	Black	Support customized colors
	Silver
	Rose Gold
	Blue
	Iron ash
Placement mode	Vertical
Weight	Net weight: 1.20 KG;
	Rough weight: 1.44 KG
Package size	315mm(W) x 250mm(D) x155mm(H)
