LDCX L70 All-Aluminum Mini ITX Case.Mini Computer Case

All-aluminium material, body with water transfer printing process, four sides of the iron mesh heat dissipation, four colours are optional, 2 * USB2.0, products support customized

Model:L70

Size:197*197*72mm

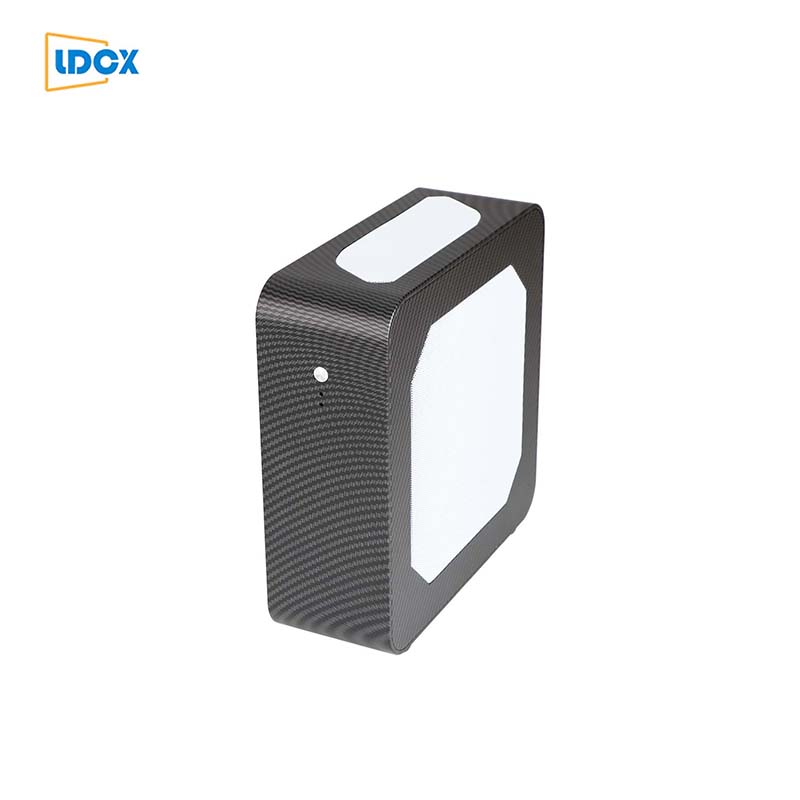

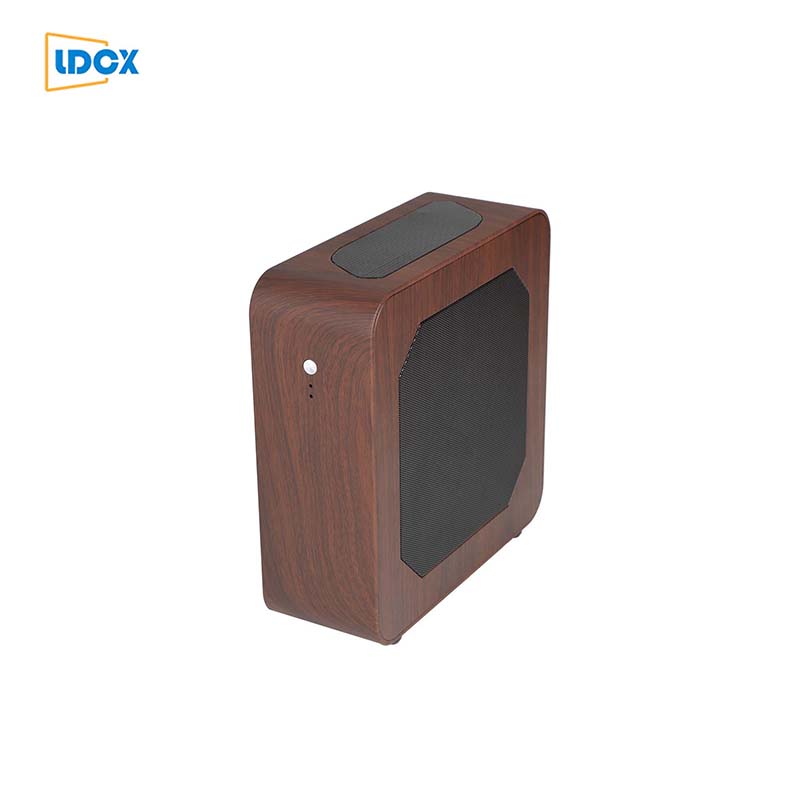

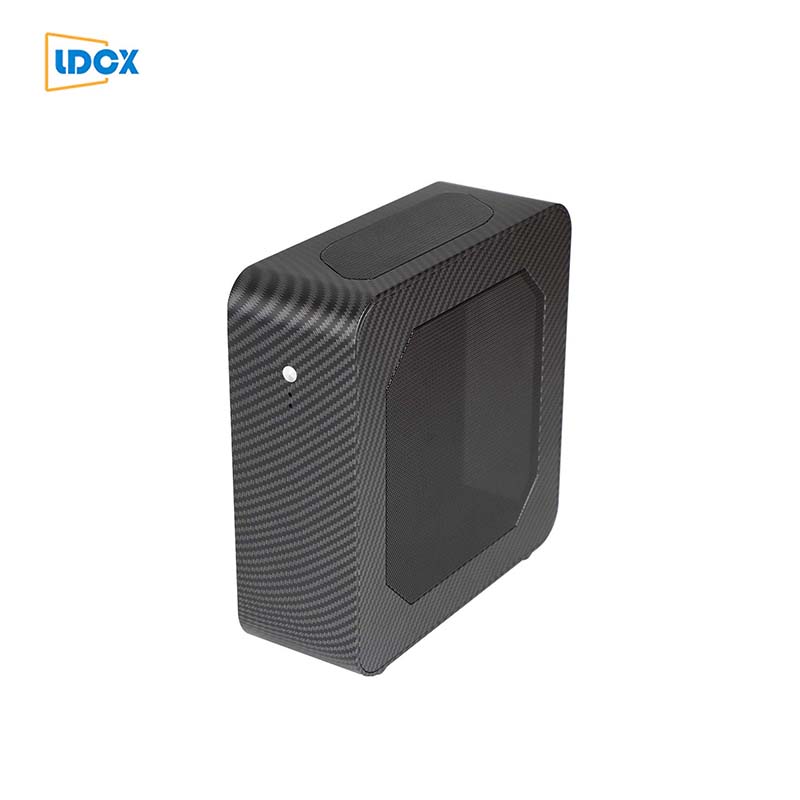

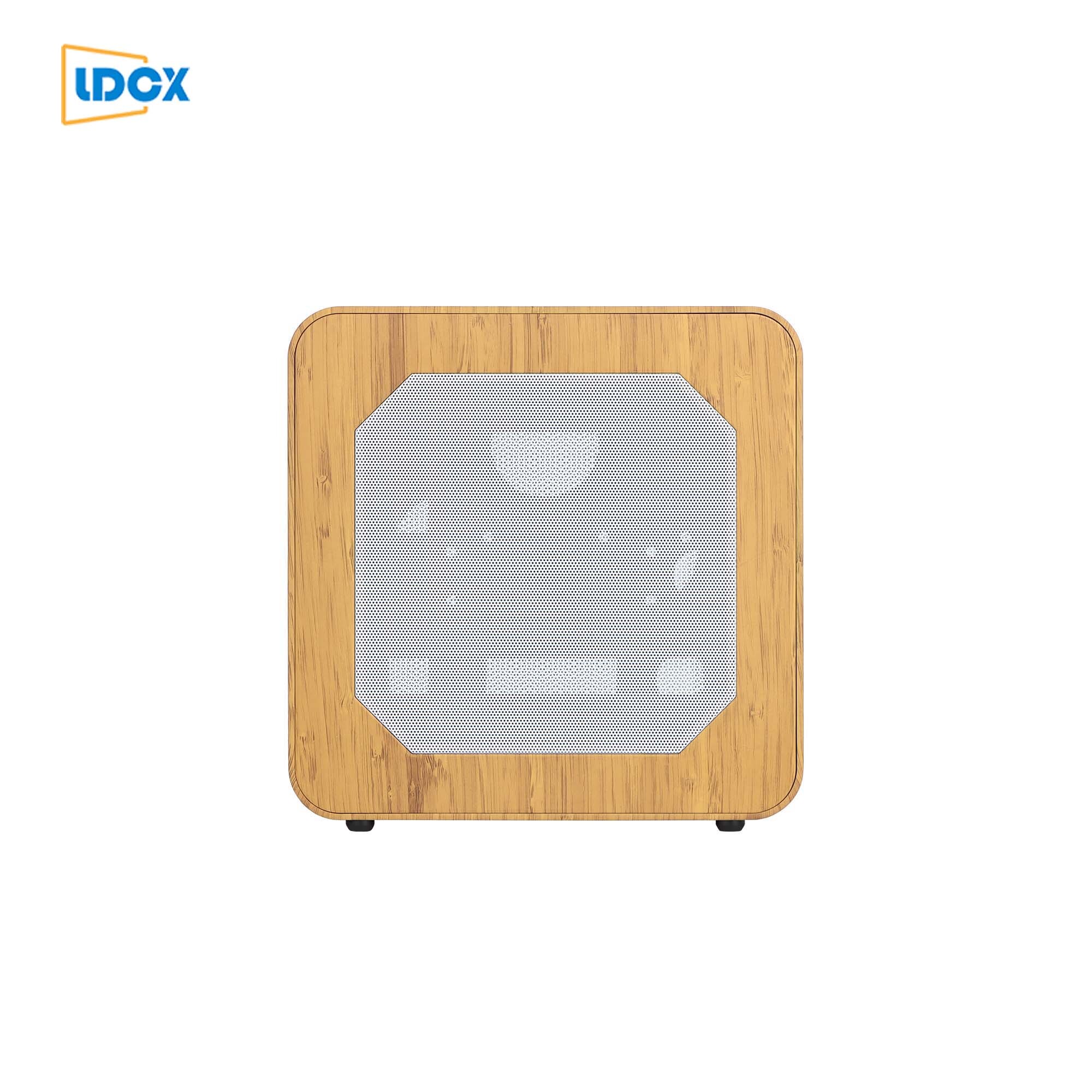

Color:Wood grain black mesh, carbon grain white mesh, bamboo grain white mesh, carbon grain black mesh

Material:All-aluminium body + four-side iron mesh heat diss

Products Inquiry

Product Pictures :

Product Model :

Name * :

email * :

CompanyName :

Message :

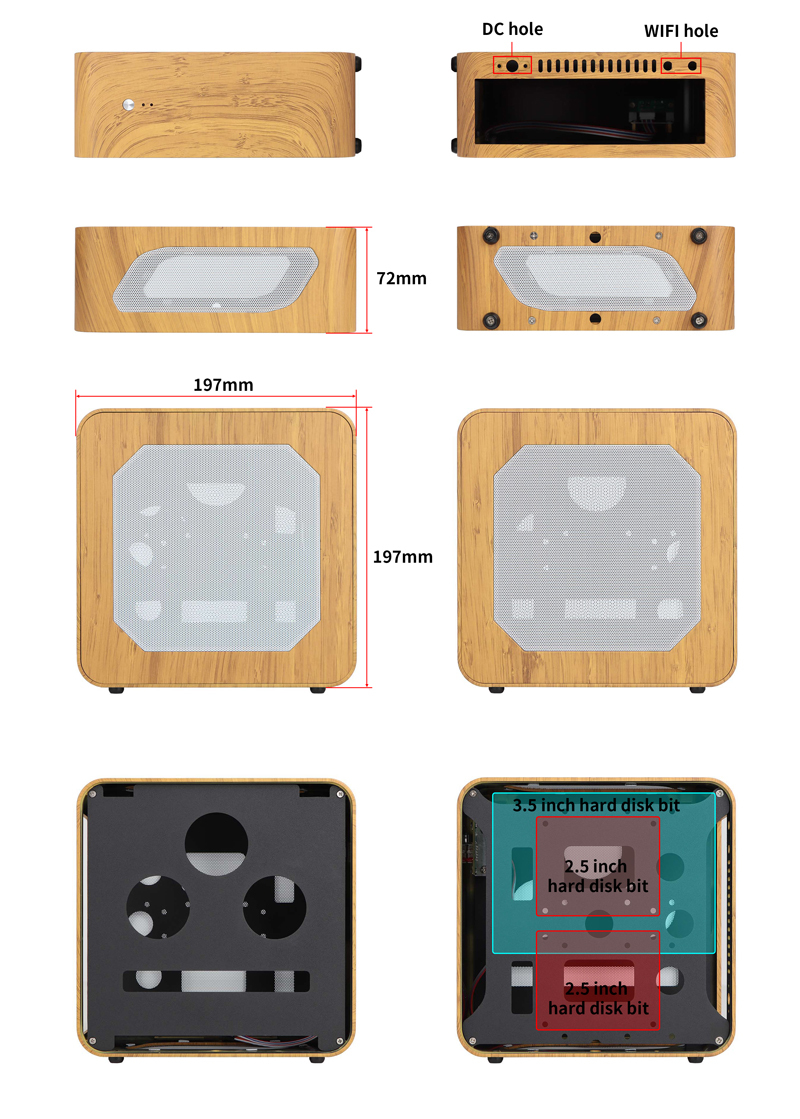

Size	197mm(W) x 197mm(D) x 72mm(H)
Material	Main body:3.5mm aluminum alloy,Side cover: 2.5mm aluminum alloy
Spec. of motherboard	Mini-ITX 170mm x 170mm
Height with CPU Fan	Under 47mm;
	Under 37mm while 2.5 inch hard disk installed;
	Under 12mm while 3.5 inch hard disk installed;
Case fan	No
Hard disk	Supporting 2 x 2.5inch / 1 x 3.5inch HD installed.
Graphics card	No
Power Supply	DC-ATX
Front interface	No
Post interface	2 x WIFI hole
	1 x Full height panel hole.
	1 x DC hole
Color	Bamboo pattern white net	Support customized colors
	Wood grain black net
	Carbon white net
	Carbon black net
Placement mode	Vertical
Weight	Net weight: 1.02 KG;
	Rough weight: 1.30 KG
Package size	225mm(W) x 133mm(D) x 262mm(H)
