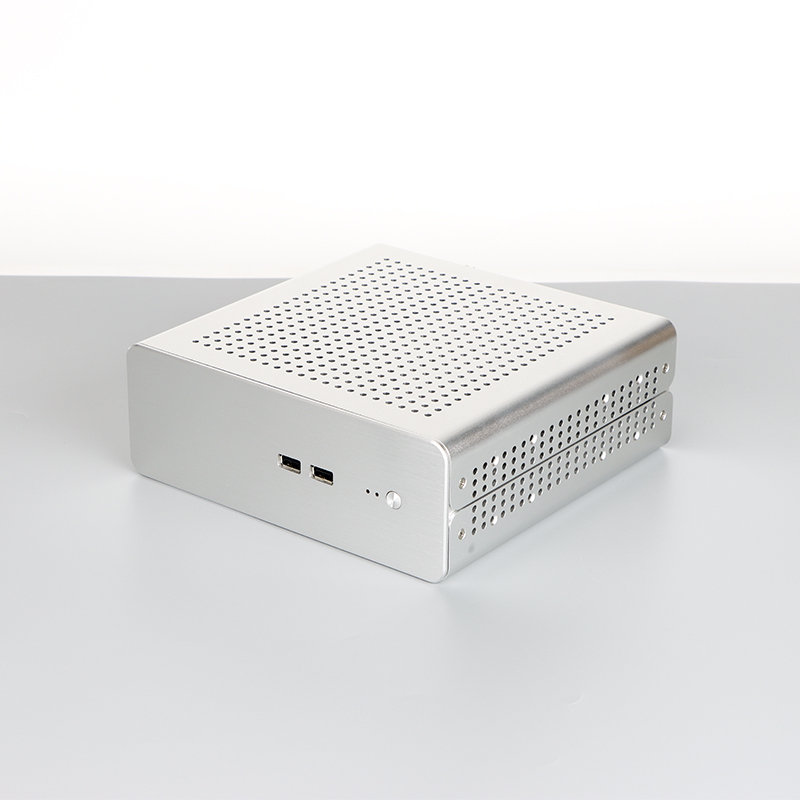

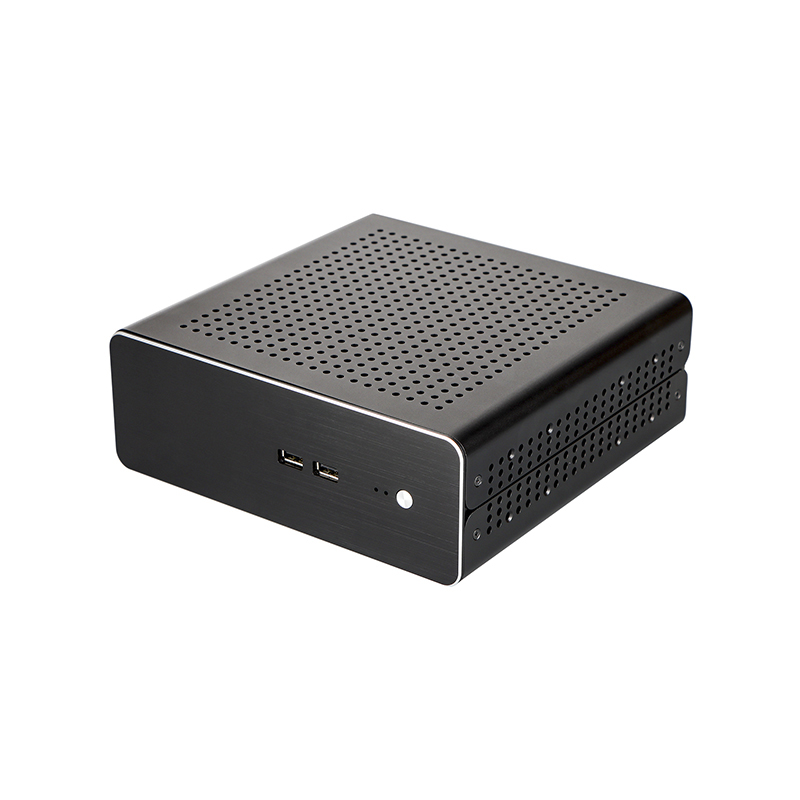

LDCX G70S All-Aluminum Mini ITX Case.Mini Computer Case

All-aluminium material.two colours available.2*USB2.0.products support customization

Model:G70S

Size:210*203*75mm

Color:Black.Silver

Material:All-Aluminum

Products Inquiry

Product Pictures :

Product Model :

Name * :

email * :

CompanyName :

Message :

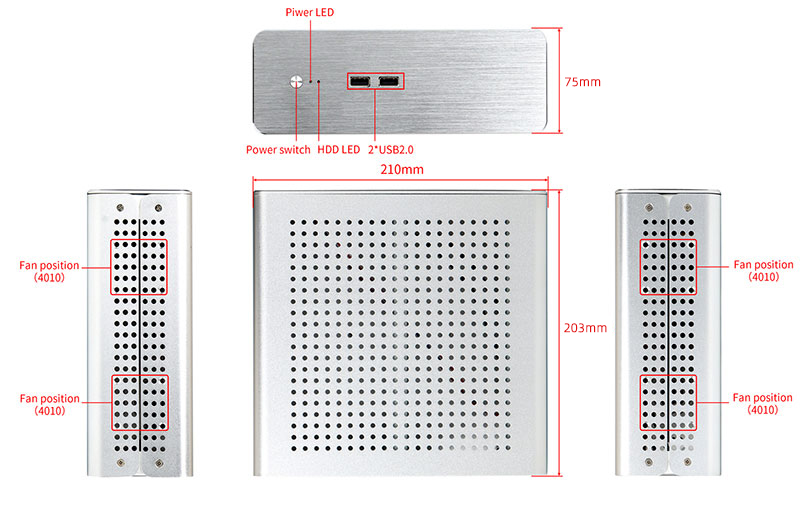

Size	210mm(W) x 203mm(D) x 75mm(H)
Material	Body:High heat dissipation aluminum (main body thickness 2.0 mm) high gloss The panel board: Plastic
Spec. of motherboard	Mini-ITX 170mm x 170mm / 170mm x 190mm
Height with CPU Fan	Under 45mm
	Under 35mm while 2.5 inch hard disk installed
	Under 19mm while 3.5 inch hard disk installed
Case fan	4 x 4010 Fan

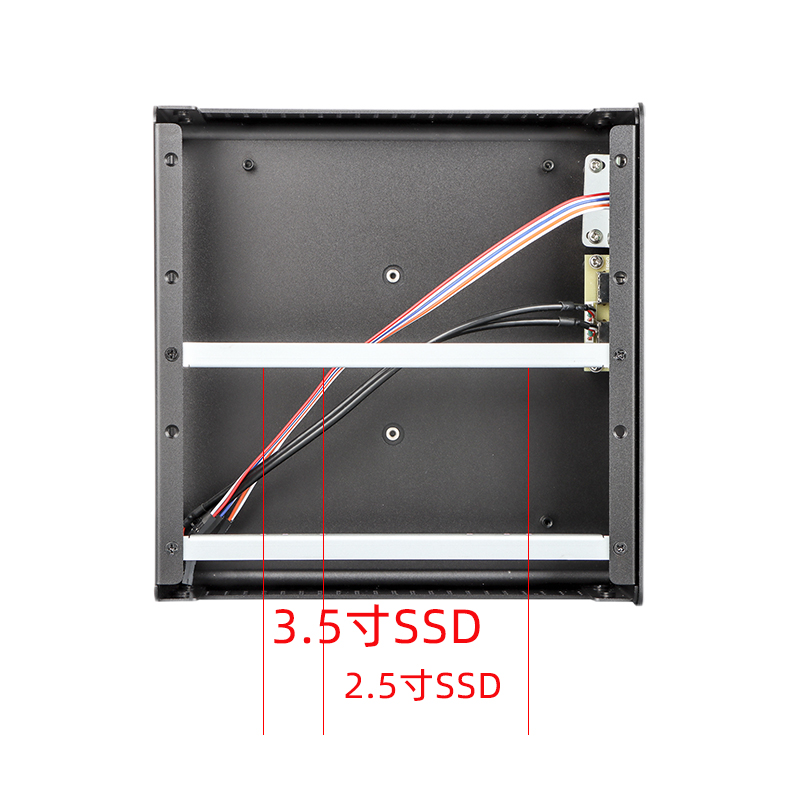

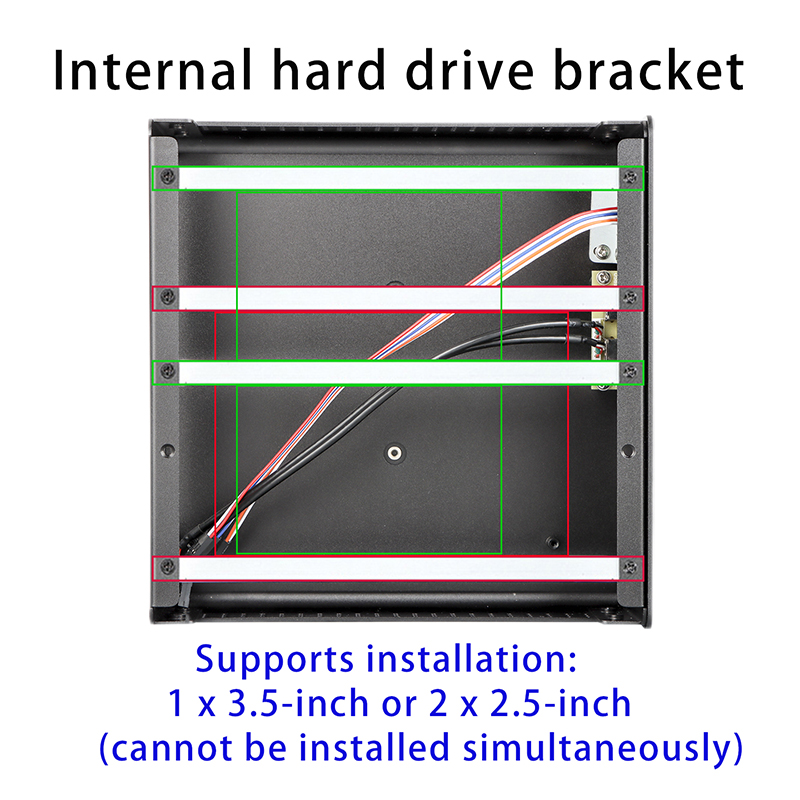

Hard disk	Supporting 1 x 2.5inch HD installed / 1 x 3.5inch HD installed
Graphics card	No
Power Supply	DC-ATX
Front interface	2 x USB2.0 / 2 x USB3.0

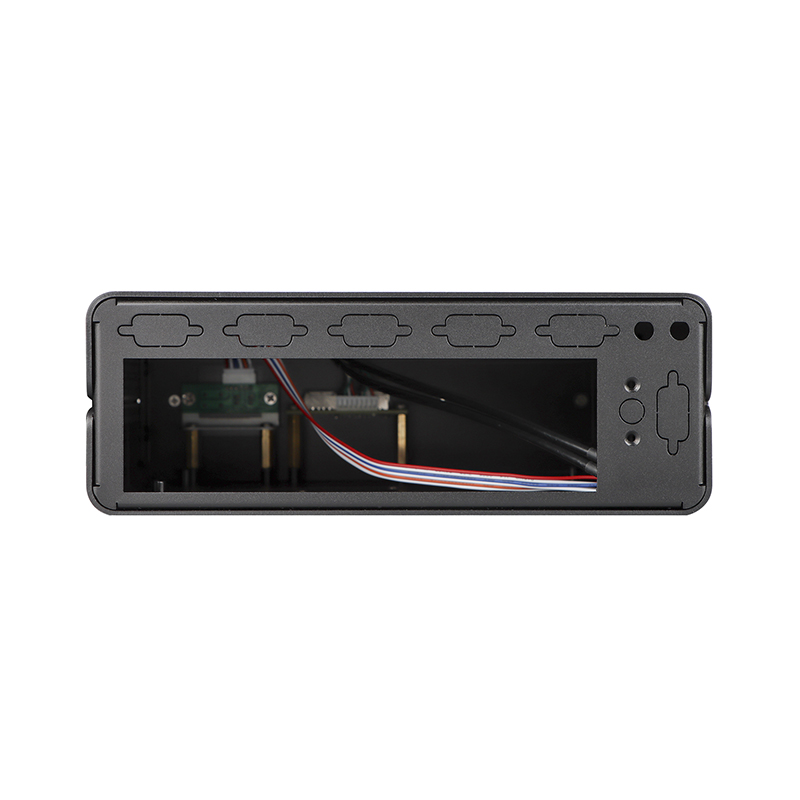

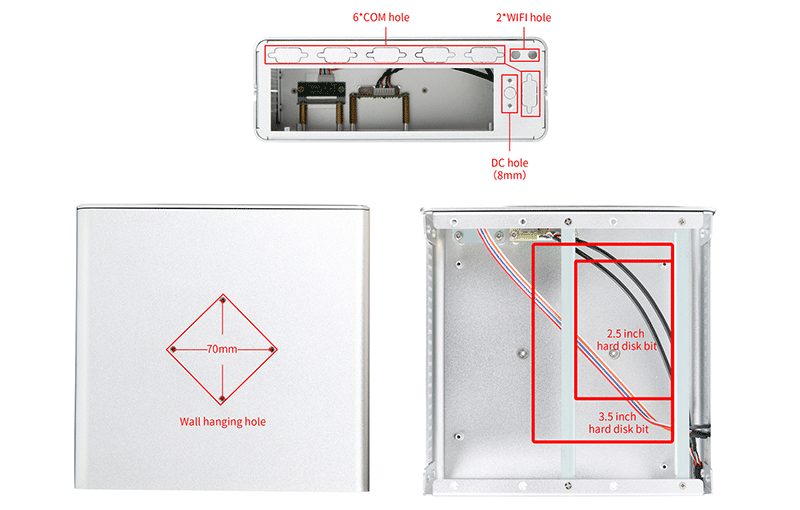

Post interface	2 x WIFI hole
	1 x Full height panel hole
	1 x DC hole
	6 x COM hole
Color	Black	Support customized colors
	Silver

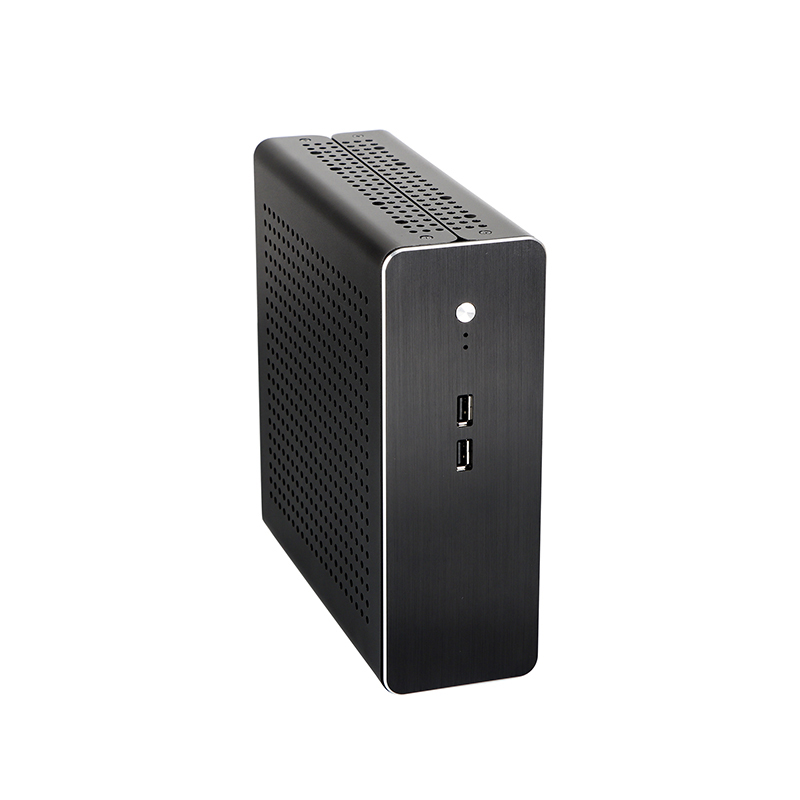

Placement mode	Vertical
	Horizontal
	Wall hanging
Weight	Net weight: 1.00 KG
	Rough weight: 1.18 KG
Package size	245mm(W) x 240mm(D) x 138mm(H)

G70S ITX Case.jpg
